HF Series
Expanded TPU ( ETPU ) HF Series
Features: Lightweight, Excellent Rebounding, UV Resistance, Excellent Abrasion Resistance, Steam Moulding & Adhesive Processing.
Quantity:
Processing method: Steam Molding, Adhesive Processing

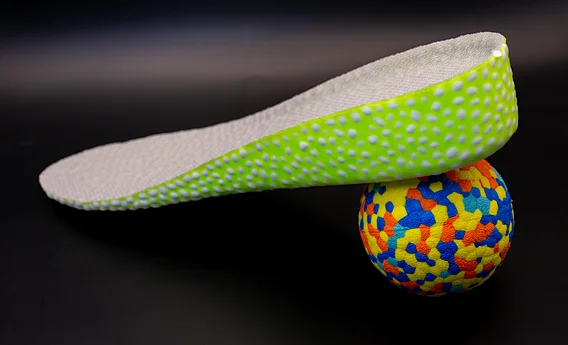

Applications: Sport Shoe Sole, Glued Sole, Yoga Mats, Plastic Runways, Pet Toys, etc.
性能 Properties | 测试标准 Testing Standard | 单位 Unit | HF121 | HF211 | HF431 | HF531 |
颗粒密度 Beads Density | ASTM D792 | g/cm3 | 0.15 | 0.14 | 0.14 | 0.13 |
硬度 Hardness | ASTM D2240 | Shore C | 36-38 | 38-42 | 40-45 | 40-45 |
抗张强度 Tensile Strength | ISO 1798 | MPa | 1.8 | 1.3 | 1.8 | 1.8 |
断裂伸长率 Elongation at Break | ISO 1798 | % | 200 | 170 | 150 | 150 |
撕裂强度 Tear Strength | ISO 1798 | kN/m | 20 | 15 | 17 | 17 |
回弹性 Rebound | ISO 8307 | % | 45 | 56 | 69 | 70 |
压缩永久形变 Compression | ISO 1856 Method C | % | 30 | 30 | 24 | 24 |
耐黄变 Yellowing-resistance Grade | HG/T389-2001 Method A | Grade | 4 | 4 | 4.5 | 4-5 |
耐磨性能 Abrasion Resistance | GB/T3903.2-2017 | mm | 10.7 | 11 | 10.2 | 10.2 |
